FESTO QS Fitting

FESTO Pneumatic LR Regulator

Structure : Diaphragmtype pressure regulator

Media : Compressed air, filtered, lubricated or nonlubricated

Material : Aluminum housing, plastic adjustment knob

Air Consumption : Minimal, determined by downstream flow requirements

Maximum Torque : Not specified (not torquecentric device)

Speed : Not applicable (static regulator)

FESTO 4 ID 6 OD 8 ID 10 OD 12 OD Air Tube Pipe

Structure : Tube Pipe

Media : Air

Material : Plastic

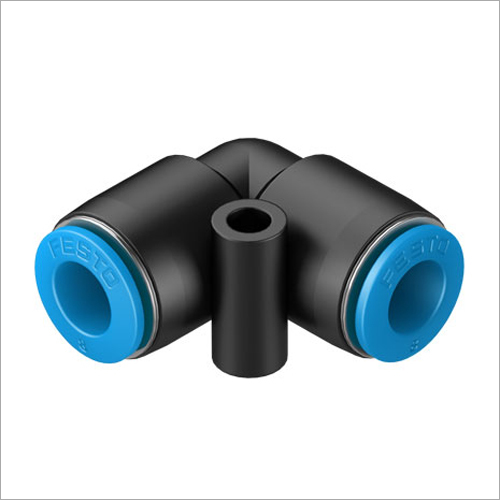

FESTO Push In Fitting

Structure : Onetouch pushin fitting; straight, elbow, T, and other shapes

Media : Compressed Air, Vacuum (as per fitting rating)

Material : NickelPlated Brass, PBT (Polybutylene Terephthalate)

Air Consumption : N/A (Fittings are passive components and do not consume air)

Maximum Torque : Varies by size; typically 0.8 to 2.5 Nm (thread dependent)

Speed : Up to 20 m/s (depends on system and air flow)

FESTO Pneumatic DSR Rotary Drive

Structure : Rack and pinion rotary actuator

Media : Compressed air, filtered, lubricated or unlubricated

Material : Anodized aluminum (housing), Steel (shaft and pistons)

Air Consumption : 0.44 ... 3.8 l/cycle

Maximum Torque : 0.15 ... 12 Nm depending on size

Speed : Up to 360/s
